Dust & Blemish Contamination
Unfiltered factory air causes paint defects and costly rework. We provide positive pressure designs with ceiling filters to ensure absolute cleanliness.
Industrial Spray Paint Booth System
Precision Environment Control for Professional Coating
YT Environmental designs and manufactures custom spray paint booths engineered for automotive, heavy machinery, and furniture industries. Our systems ensure flawless finishes by controlling airflow, capturing overspray, and filtering VOC emissions to meet strict environmental standards.
Engineered for Compliance & Quality
- High overspray capture efficiency
- Advanced VOC & exhaust gas filtration
- Optimal downdraft or crossdraft airflow
- Custom temperature & baking control
01
Flawless Coating Quality
Multi-stage intake filtration creates a clean room environment, preventing dust contamination.
02
Efficient Overspray Capture

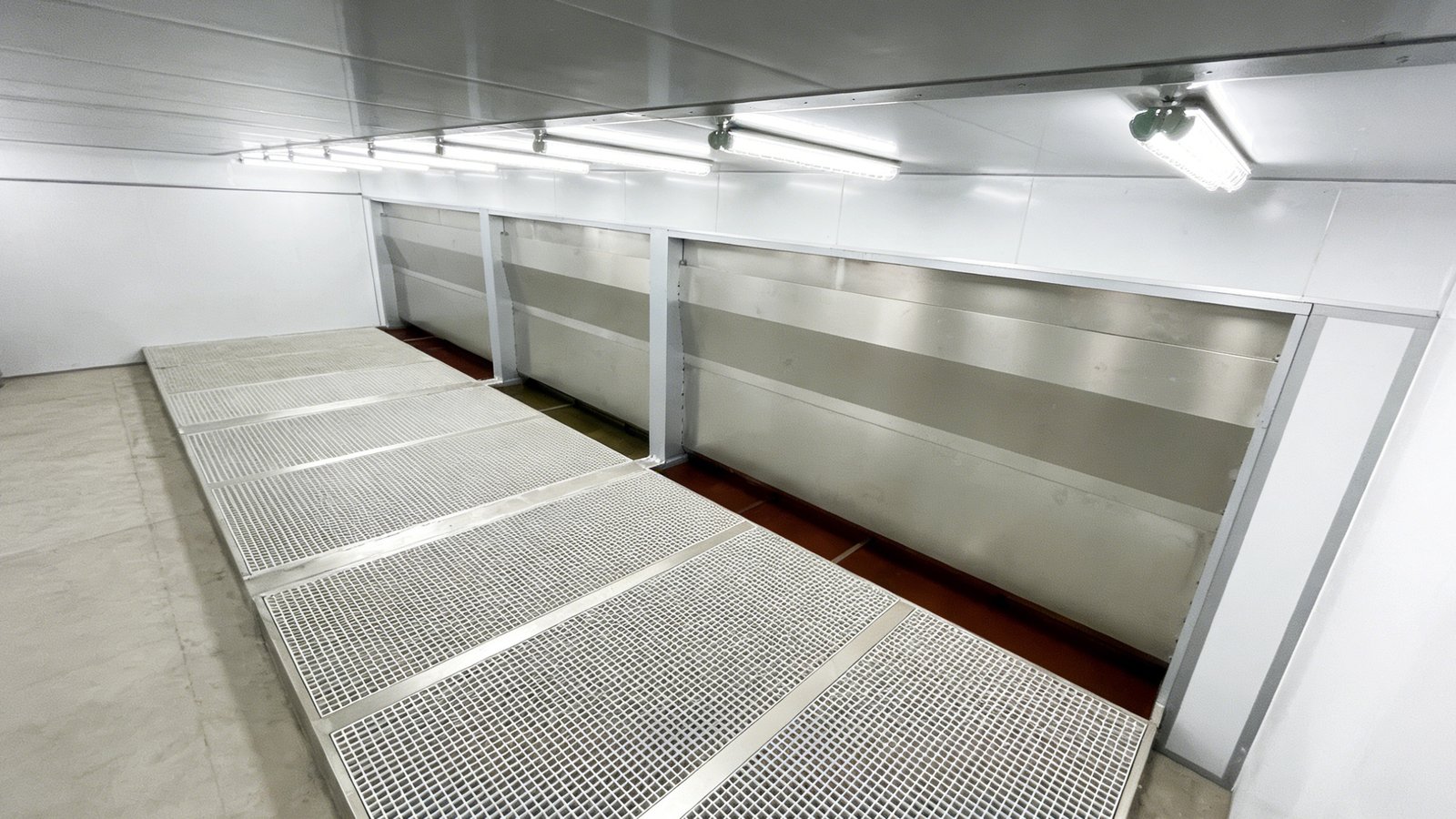

Advanced dry filter walls or water-wash (water curtain) systems to instantly trap paint mist.
03
VOC Emission Compliance
Integrated activated carbon or RTO/CO units treat exhaust gases to meet local environmental laws.
04
Operator Health & Safety

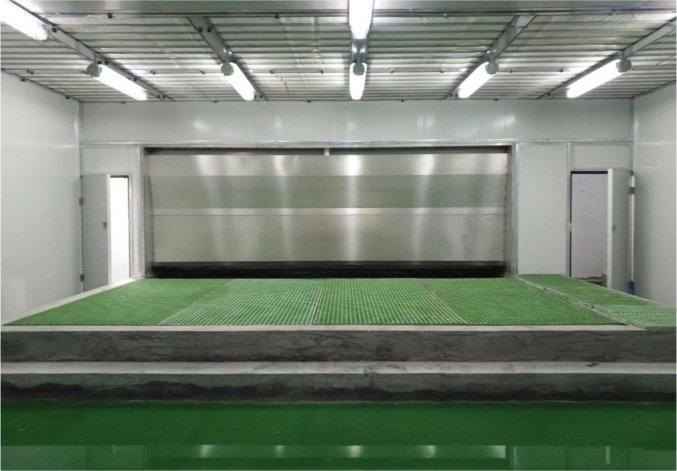

Explosion-proof LED lighting and continuous fresh air supply ensure a safe working environment.
Problems We Solve
Why Professional Coating Needs a Controlled Booth
Industrial painting involves hazardous solvents and sticky overspray. A professional spray booth protects your products from blemishes, protects your workers from toxins, and protects your business from emission fines.
Hazardous Overspray Accumulation
Without proper extraction, paint mist coats the workshop and endangers operators. We calculate the exact air changes per minute (CFM/CMH) needed to clear the zone instantly.
Environmental Non-Compliance
Strict emission limits require professional abatement. We match exhaust filtration technology directly to your paint type (solvent-based or water-borne).
Video Showcase
See the Spray Booth in Action
Watch how our custom spray paint booths operate in real-world industrial environments, delivering perfect airflow and effective over-spray capture.
System Configuration
Typical Equipment Modules
YT Environmental designs every spray booth based on workpiece dimensions, paint type, and available workshop space.

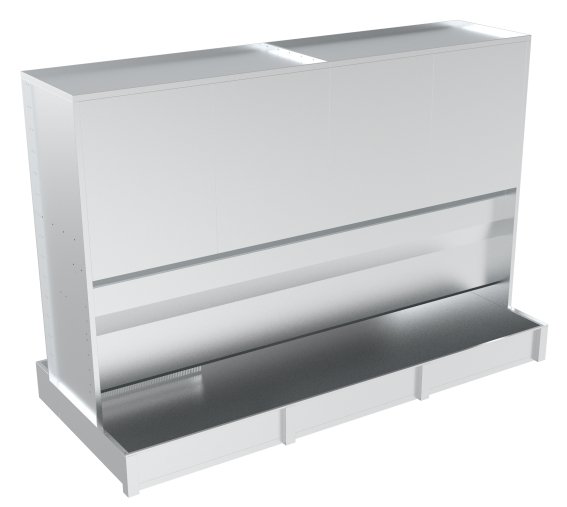

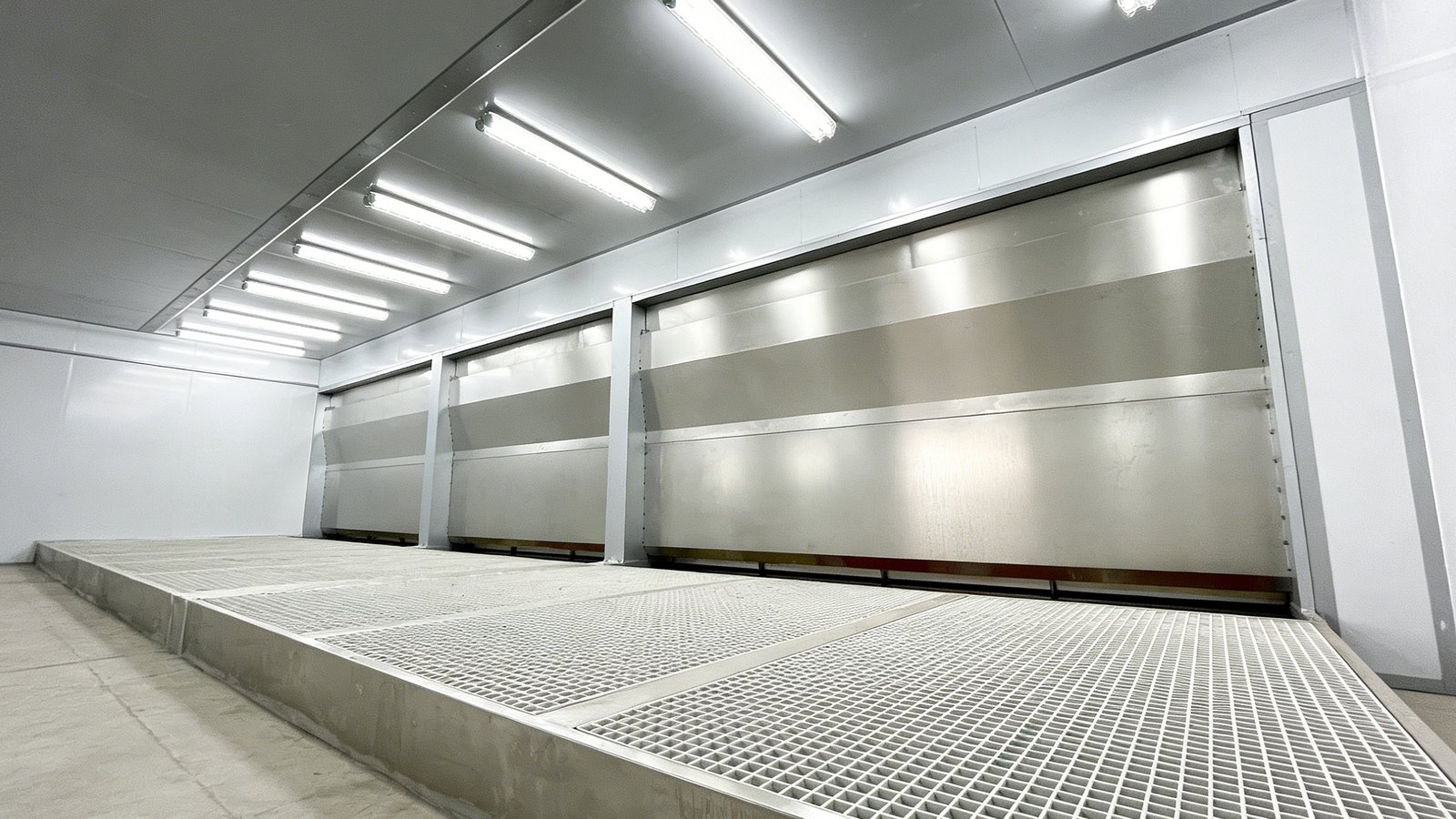

- Dry filter exhaust wall or wet water-curtain system
- Multi-stage filtration: Primary, ceiling, and floor filters
- High-efficiency centrifugal intake and exhaust fan units
- Explosion-proof LED lighting matrix for shadow-free visibility
- Optional baking/curing mode with diesel, gas, or electric heat exchangers
- Integrated VOC treatment (Activated Carbon, UV Photo-oxygen, or RTO)
Engineering Process
From Workshop Layout to Final Installation
Building a high-performance spray booth requires precise engineering. We analyze your coating process first, then design the structural, aerodynamic, and thermal systems to match.
Process Diagnosis
Confirm paint type, solvent base, workpiece size, and production volume.
Airflow Calculation
Calculate required downdraft velocity, air replacement rate, and thermal capacity.
Layout Design
Plan booth dimensions, duct routing, material handling, and exhaust treatment location.
Manufacturing
Produce EPS/Rockwool insulated panels, fan cabins, and smart control cabinets.
Installation Support
Provide complete mechanical, electrical, and safety commissioning on site.
Customization Parameters
Key Information Needed for Quotation
Share the following information and YT Environmental will design the optimal spray booth configuration, airflow range, and heating solution for you.
Coating Process
Liquid painting, powder coating, flash-off, or high-temperature baking
Material Type
Solvent-based paint, water-borne paint, varnishes, or specialty industrial coatings
Workpiece Size
Maximum dimensions (L x W x H) and weight of the largest parts being coated
Workshop Layout
Available indoor space, ceiling height, and material handling method (conveyor, crane, cart)
Environmental Goal
Target cleanliness class, operator safety standards, and local VOC emission limits
Safety & Power
Fire suppression needs, explosion-proof ratings, and available voltage/heating fuel source
Automotive Refinishing
Heavy Machinery
Aerospace Components
Wood Furniture
Rail & Transit
Metal Fabrication
Marine Equipment
Industrial Coatings
